Specifying Shanko for Protected Exterior Applications

Covered outdoor installations require more precise specifications than interior work. The difference between a pressed metal ceiling that performs for decades on a covered porch and one that fails within a few years is almost always a specification decision, not a material limitation. This page covers the decisions: finish selection, substrate, fasteners, edge treatment, and ventilation. All guidance below is specific to Shanko pressed steel with an industrial powder-coat finish.

Finish Selection

Shanko's standard powder-coat line is appropriate for covered outdoor applications. Within that line, outdoor specifications should favor:

Lighter colors over dark

Dark powder-coat finishes absorb significantly more solar heat in partially exposed conditions, which accelerates thermal cycling at fastener points and panel seams. Whites, creams, and soft grays reduce this effect and are historically appropriate for most porch and soffit applications. Shanko's White, Antique White, and Silver finishes are the most commonly specified for outdoor use.

Matte and satin sheens over gloss

Matte and satin finishes show weathering, minor surface variation, and cleaning marks less than high-gloss. For outdoor applications where humidity is a factor, lower-sheen finishes present fewer long-term maintenance concerns.

Standard catalog colors over custom

Shanko's standard powder-coat colors are formulated and tested for durability. Custom color matches vary in UV resistance and should be reviewed with Shanko directly before specifying in outdoor conditions.

For coastal applications within approximately one mile of salt water

All cut edges and fastener penetrations should be treated with a zinc-based rust-inhibiting primer before installation. The powder-coat surface is the protection; raw steel exposed during cutting or drilling is the vulnerability.

Substrate

Pressed metal panels require a solid substrate. For outdoor applications, substrate choice matters more than in interior work.


Exterior-rated plywood (CDX minimum) or cement board is preferable to standard interior drywall, which will degrade in outdoor humidity conditions regardless of how well the ceiling appears to be covered. Cement board is the stronger choice when there is a possibility of incidental moisture contact.


Do not install a vapor barrier between the tile and substrate in outdoor applications; this traps rather than manages moisture. The installation should permit air circulation behind the panels.

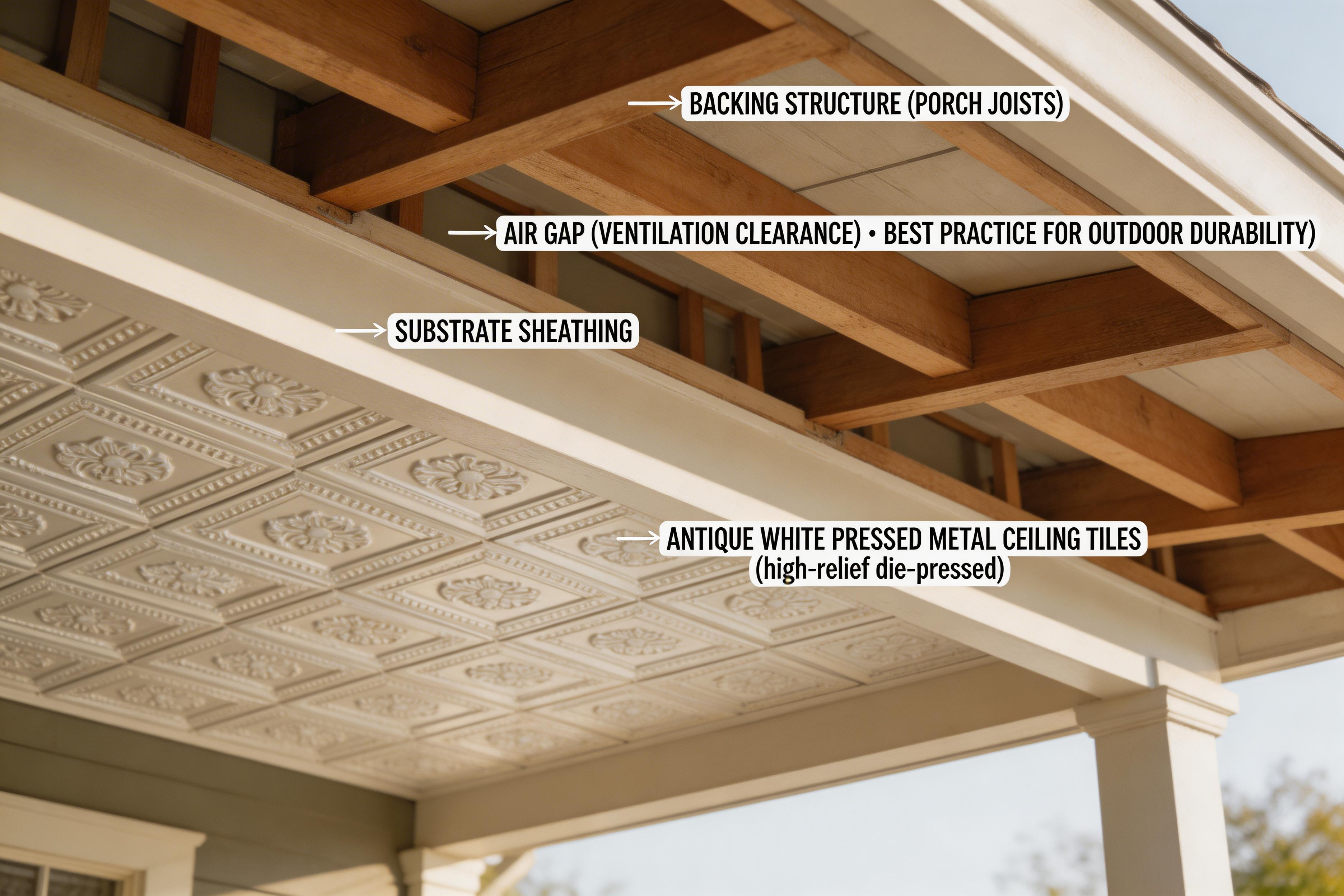

Ceiling with pressed metal tiles and labeled components on a porch

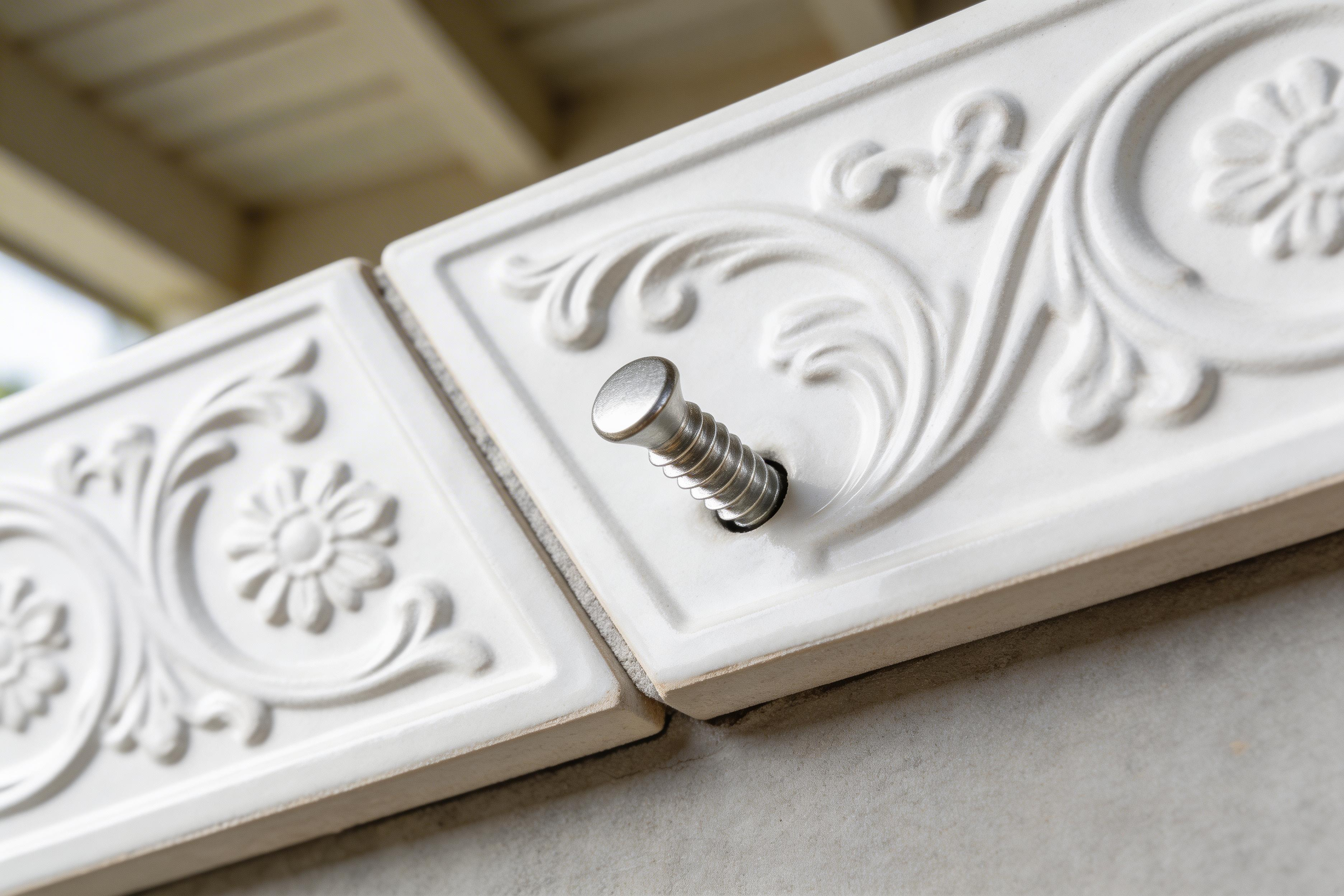

Decorative white tile with intricate patterns and a screw on a neutral background

Fasteners

This is the detail most often underspecified in outdoor pressed metal installations. All fasteners must be stainless steel or hot-dipped galvanized. Standard steel screws or nails will corrode in outdoor humidity and stain the tile surface from the back.


Ring-shank or screw-shank fasteners provide better holding power in wood framing subject to seasonal movement. In coastal salt-air environments within a half-mile of salt water, stainless steel fasteners are required; hot-dipped galvanized is insufficient at that exposure level. For commercial and residential projects, Metal Ceiling Tiles for Outdoor Spaces provide a durable, visually continuous solution that extends interior design patterns into protected exterior areas.

Edge Treatment and Joints

All cut edges (at walls, penetrations, and transitions between panels) should be sealed with a metal primer or a rust-inhibiting paint formulated for steel. In freeze-thaw climates, perimeter joint treatment should allow for movement; a flexible caulk at perimeter joints performs better than rigid compounds under temperature cycling.


Panel-to-panel joints do not require caulking in most covered outdoor applications. Perimeter conditions, where tile meets a wall, soffit fascia, or trim piece, benefit from a flexible, paintable sealant.

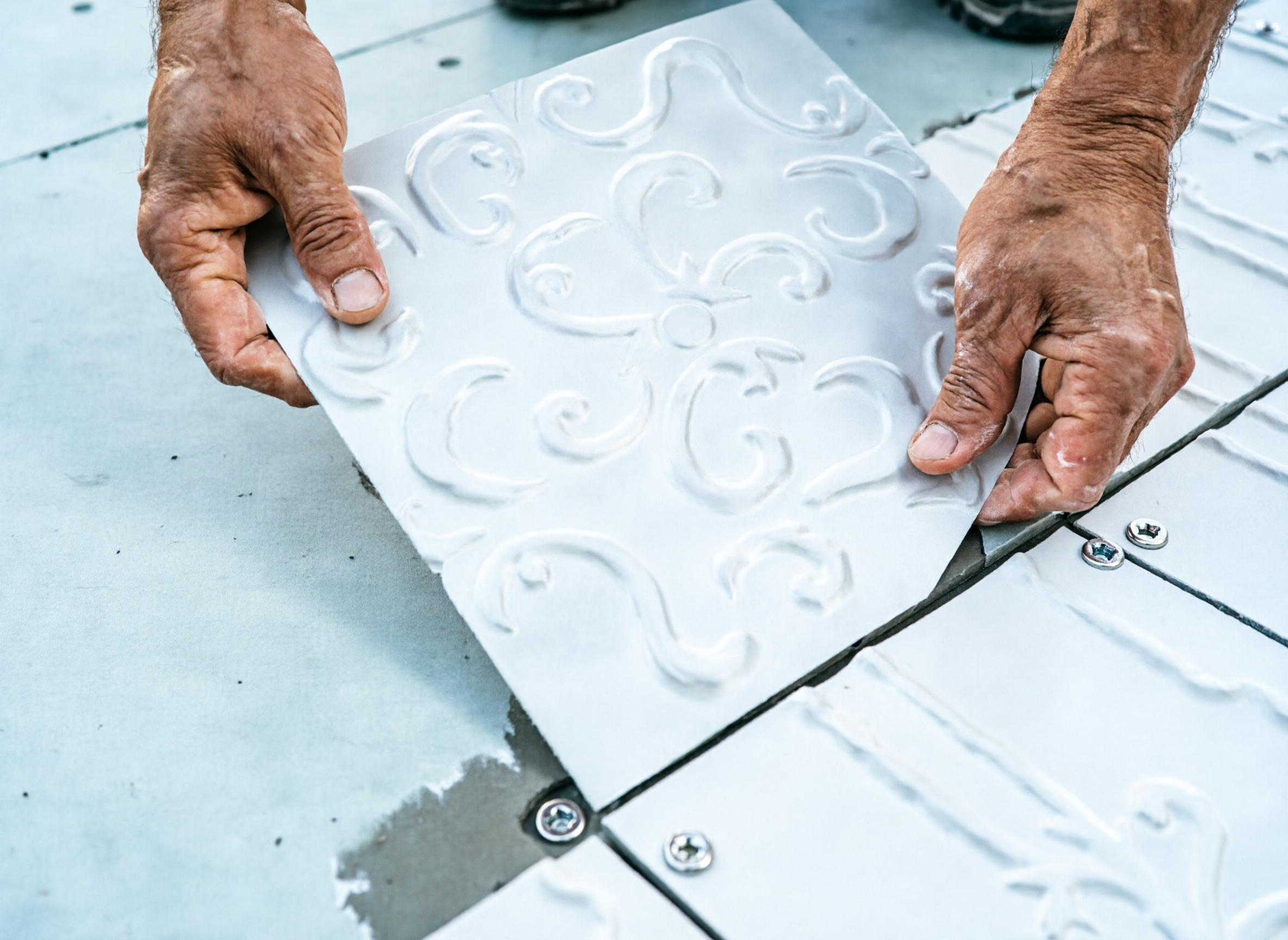

Person applying decorative tile adhesive with a patterned sheet on a tiled floor.

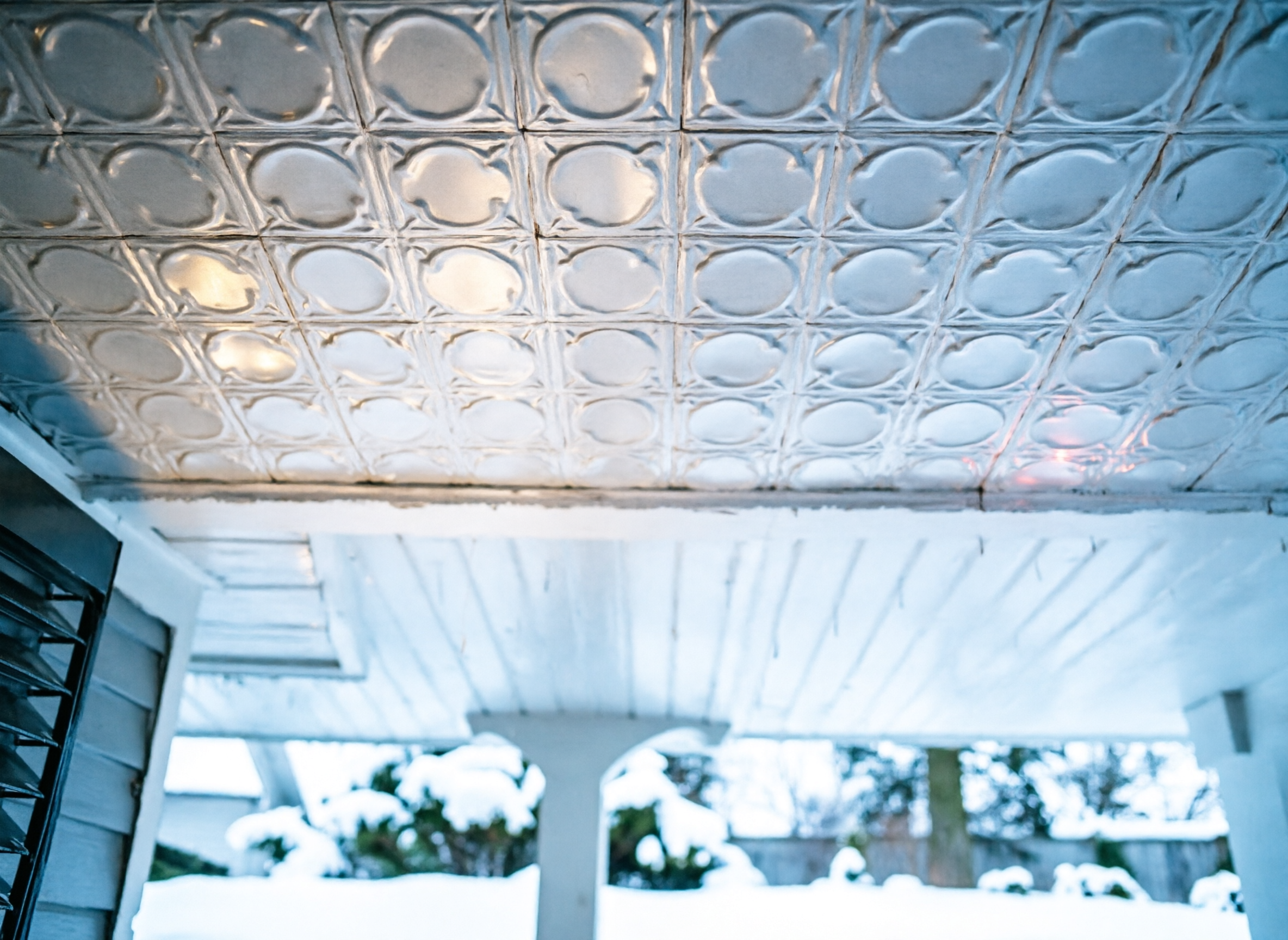

Ceiling with decorative tile pattern and snow-covered ground outside

Ventilation

Covered outdoor ceilings benefit from air circulation behind the panel plane. Trapped humid air against the back of a tin panel in outdoor conditions is a stronger corrosion driver than ambient outdoor humidity. Where ceiling construction allows, a gap between the substrate and any backing structure above it promotes air movement, helping prevent moisture accumulation.


These details represent standard practice in quality exterior finish work, not exceptional measures. Shanko's team is available to advise on substrate, fastener, and finish combinations for specific project conditions before specification is finalized.
